PAMAX Tactical Magnetic Buffer System Conversion Kit - FORCED RESET TRIGGER (MBS-FRT)
CONVERSION KIT ONLY FROM MBS-C TO MBS-FRT.
THIS IS A PRE-ORDER PRODUCT WITH EARLY PRICING SCHEDULED SHIP DATE OF JULY. IF YOU ARE LOOKING FOR THE DEDICATED SYSTEM PLEASE SEE PRODUCT SKU: MBSFRT
— Powered by Frytech Technology
The Magnetic Buffer System (MBS-FRT) is a next-generation recoil management solution, combining patented Frytech Technology with enhanced spring engineering to deliver superior shooting performance for the AR15 platform that is used in conjuction with Forced Reset Triggers: FRT Drop In, FRT Casette, Super Safety, Full-Auto Trigger Packs.
THE MBS-FRT USES AN A5-TUBE & IS COMPATIBLE WITH THE LIMA 6 BELT FED UPPER RECEIVERS.
The MBS-FRT was engineered specifically to have the force required to strip rounds from steel links with belt fed uppers while having enough energy to ensure bolt lock up. This was achieved by tuning our hybrid system to return weight while using Frytech technology for recoil dampening. The MBS-FRT utilizes a unique MBS-H3 weighted buffer made from rare earth metal that achieves an H3 weight within the smaller confines of our system. This MBS-H3 prevents bolt bounce for FRT/Full Auto operation.
Why It’s Different
Traditional buffer systems rely solely on round-wire compression springs—functional, but not optimized for peak performance. The MBS takes a hybrid approach, using staggered magnetic fields alongside precision-tuned springs to dramatically reduce felt recoil and muzzle rise.
By staging magnetic resistance, the MBS absorbs bolt carrier inertia in multiple phases—each calibrated for the mass and velocity of your specific caliber. This progressive damping delivers faster follow-up shots, better control, and less shooter fatigue.
MBS is quieter then a traditional AR15 buffer system and gets rid of the annoying "twang" from the milspec spring.
If you are a fan of a flash hider as a muzzle device then the MBS is for you. Usually people opt for a muzzle brake or compensator instead of a flashider because it offers more stability and less felt recoil. The MBS now does this for you on the back end of the rifle allowing the use of a flash hider to be more balanced and beneficial for use. This is especially true for those that use a flash hider combo for suppressed systems.
Offers the option of not using a muzzle brake or compensator and not dealing with obnoxious muzzle concussion or heavy gas blowback. Or if that is not a factor you can use in conjunction with your muzzle brake for increased recoil reduction.
The MBS thrives when using suppressors. Suppressors increase gas pressure and max out traditional springs, requiring heavier buffers that slow the rate of fire. Suppressors typically increase mechanical recoil and this is easily mitigated by use of the magnetic fields.

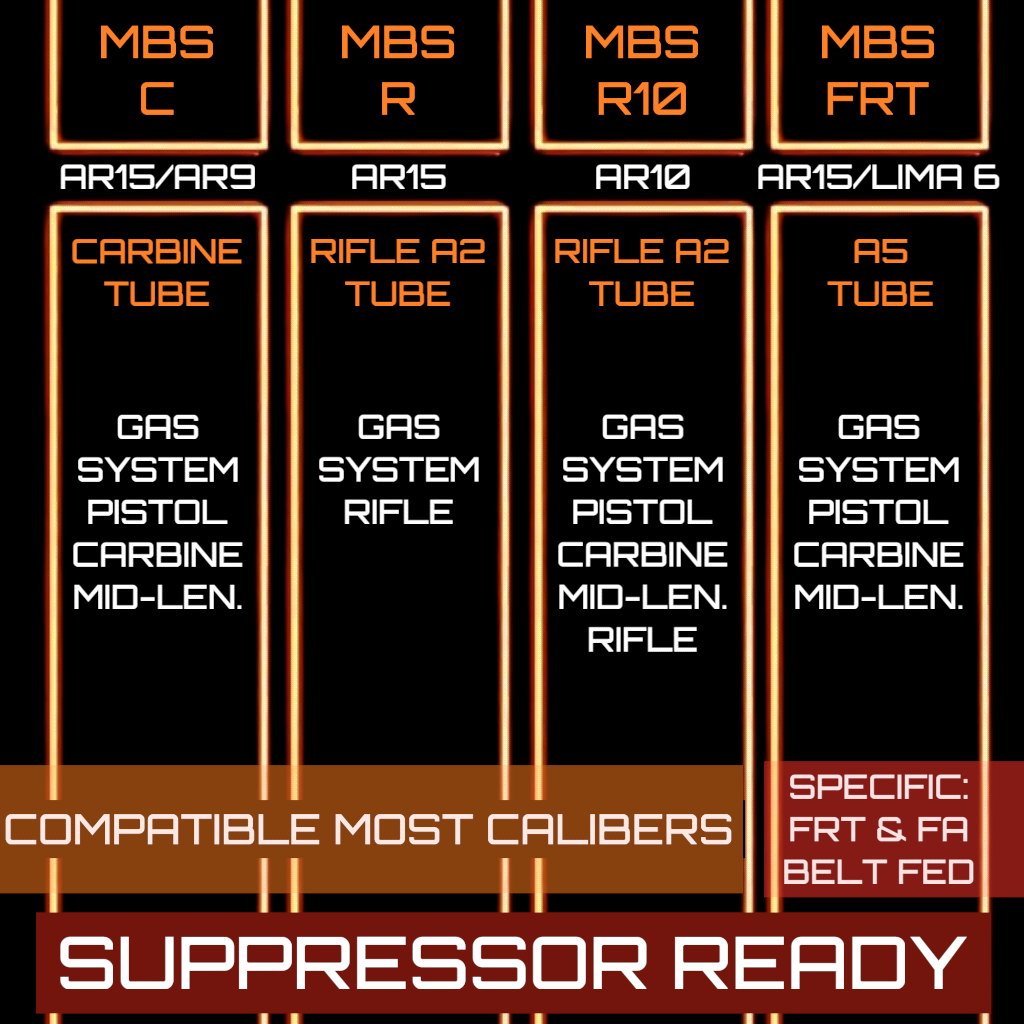

Compatibility
- Fits all mil-spec AR15 & AR-9 lowers
- Fits LIMA 6 Belt Fed Uppers
- Compatible with
- Tuned for 5.56/.223 & 9mm Calibers
- Tuned for Pistol/Carbine/Mid-Length Gas Systems (Adjustable Gas Block Recommended)
- Compatible with FRT Triggers, Super Safeties and Full Auto. (Adjustable Gas Block Recommended)
- Works with all mil-spec stock systems
- Compatible with milspec buffer retainers
- Replaces buffer tube, buffer, and spring
- Uses standard or included castle nut & end plate
- Maintains normal AR15 receiver takedown.
Conversion Kit Included Parts:
- PAMAX MBS-H3 Buffer - Heavy Buffer Propriety to the MBS-FRT - Replaces MBS-C Front Magnet #4
- 9-Position 7075-T6 Aluminum CNC-Milled Buffer Tube — Replaces MBS-C Tube
- MBS-FRT Replacement Spring - Replaces MBS-C flatwire spring.
Installation
The MBS-FRT KIT is a swap. Install it like any other mil-spec tube, then follow the provided video instructions to use Frytech technology from the MBS-C nd install into the MBS-FRT.
Torque spec: Castle nut — 25 ft-lbs
Important: The MBS is not designed for disassembly of magnets. High-power magnets inside can cause injury if mishandled. Tampering voids the warranty. Use caution during installation or removal (vice and included tools required for install).
Experience magnetic recoil control — faster, flatter, and smoother shooting with the PAMAX MBS-FRT kit.
